19  MA and AR processes

library(dplyr)
# required for figures
library(ggplot2)
library(gridExtra)
# required for render latex
library(backports)
library(latex2exp)
# required for render tables
library(knitr)
library(kableExtra)
# Random seed
set.seed(1)

19.1 MA(q)

In time series analysis an univariate time series $Y_t$ is defined as Moving Average process with order q (MA(q)), when it satisfy the equations of the differences, i.e.  $$\begin{array}{}\text{(19.1)}& Y_t=u_t+{\theta }_1{u}_{t-1}+\cdots +{\theta }_q{u}_{t-q}\text{,}\end{array}$$ where $u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2)$ (Definition 18.5). An MA(q) process can be equivalently expressed as a polynomial in $\theta$ of the Lag operator (Equation 18.7), i.e.  $$Y_t=\mathrm{\Theta }(L)u_t,u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2)\text{,}$$ where $\mathrm{\Theta }(L)$ is a polynomial of the form $\mathrm{\Theta }(L)=1+{\theta }_{1}L+\cdots +{\theta }_q{L}^q$. Given this representation it is clear that an MA(q) process is stationary independently on the value of the parameters. Moreover, the stationary process $Y_t$ admits has a infinite moving average or MA($\mathrm{\infty }$) representation (see Wold (1939)) if it satisfies the equations of differences, i.e.  $$Y_t=\mathrm{\Psi }(L)u_t=u_t+{\psi }_1{u}_{t-1}+\cdots =\sum _{i=1}^{\mathrm{\infty }}{\psi }_j{u}_{t-j}\text{,}$$ under the following condition the process is stationary and ergodic, i.e.
$$\sum _{i=1}^{\mathrm{\infty }}|{\psi }_j|<\mathrm{\infty }\text{.}$$ If the above condition holds, then the process MA($\mathrm{\infty }$) can be written in compact form as: $$Y_t=\mathrm{\Psi }(L)u_t,u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2),\mathrm{\Psi }(L)=\sum _{i=1}^{\mathrm{\infty }}{\psi }_j{L}^j\text{.}$$

Proposition 19.1 ($\mathbf{\text{Expectation of an MA(q)}}$)
In general, the expected value of an MA(q) process depends on the distribution of $u_t$. Under the standard assumption that $u_t$ is a White Noise (Equation 18.1), then it’s expected value is equal to zero for every $t$, i.e.  $$\mathbb{E}\{Y_t\}=\sum _{i=0}^q{\theta }_i\mathbb{E}\{u_{t-i}\}=0\text{.}$$

Proof: Proposition 19.1

Proof. Given a process $Y_t$ such that $\mathbb{E}\{Y_t\}=\mu$, it is always possible to simply reparametrize the Equation 19.1 as: $$Y_t=\mu +u_t+{\theta }_1{u}_{t-1}+\cdots +{\theta }_q{u}_{t-q}\text{,}$$ or rescale the process, i.e ${\tilde{Y}}_t=Y_t-\mu$ and work under a process with zero mean. Then, let’s consider a process an MA process of order q, then the expectation of the process is computed as $$\begin{array}{rl}\mathbb{E}\{Y_t\}& =\mathbb{E}\{u_t+\sum _{i=1}^q{\theta }_i{u}_{t-i}\}=\sum _{i=0}^q{\theta }_i\mathbb{E}\{u_{t-i}\}=0\end{array}\text{.}$$ Hence, the expected value of $Y_t$ depends on the expected value of the residuals $u_t$, that under the White Noise assumption is zero for every $t$.

Proposition 19.2 ($\mathbf{\text{Autocovariance of an MA(p)}}$)
For every lag $k>0$, the autocovariance function, denoted as ${\gamma }_k$, is defined as: $$\begin{array}{rl}{\gamma }_k& =\mathbb{C}v\{Y_t,Y_{t-k}\}=\{\begin{array}{ll}{\sigma }_{\text{u}}^2\sum _{j=0}^{q-k}{\theta }_j{\theta }_{j+k}& k\le q\\ 0& k>q\end{array}\end{array}\text{.}$$ where by convention ${\theta }_0=1$.

The covariance is different from zero only when the lag $k$ is lower than the order of the process $q$. Setting $k=0$ one obtain the variance $\mathbb{V}\{Y_t\}$, i.e. $${\gamma }_0={\sigma }_{\text{u}}^2\sum _{i=1}^q{\theta }_i^2\text{.}$$ It follows that, the autocorrelation function is bounded up to the lag $q$, i.e.  $${\rho }_k=\{\begin{array}{ll}1& k=0\\ \frac{{\sigma }_{\text{u}}^2\sum _{j=0}^{q-k}{\theta }_j{\theta }_{j+k}}{{\sigma }_{\text{u}}^2(1+{\theta }_1^2+\cdots +{\theta }_q^2)}& 0<k\le q\\ 0& k>q\end{array}$$ where ${\rho }_k=\mathbb{C}r\{Y_t,Y_{t-k}\}$.

19.1.1 MA(1)

Proposition 19.3 ($\mathbf{\text{Moments an MA(1)}}$)
Let’s consider a process $Y_t\sim \text{MA}(1)$, i.e. $$Y_t=\mu +{\theta }_1{u}_{t-1}+u_t\text{.}$$ Independently, from the specific distribution of $u_t$, the process has to be a White Noise, hence with an expected value equal to zero. Therefore, the expectation of an MA(1) process is equal to $\mu$, i.e. $\mathbb{E}\{Y_t\}=\mu$. The variance instead is equal to $${\gamma }_0=\mathbb{V}\{Y_t\}={\sigma }_{\text{u}}^2(1+{\theta }_1^2)\text{.}$$ In general, the auto covariance function for the order $k$ is defined as $${\gamma }_k=\mathbb{C}v\{Y_t,Y_{t-k}\}=\{\begin{array}{ll}{\theta }_1{\sigma }_{\text{u}}^2& k\le 1\\ 0& k>1\end{array}$$ It follows that, the auto covariance function is bounded up to the first lag, i.e.  $$\sum _{k=0}^{\mathrm{\infty }}|{\gamma }_k|={\sigma }_{\text{u}}^2(1+{\theta }_1+{\theta }_1^2)\text{,}$$ and therefore the process is always stationary without requiring any condition on the parameter ${\theta }_1$. Also the autocorrelation is different from zero only between the first two lags, i.e. the process is said to have a short memory $${\rho }_k=\mathbb{C}r\{Y_t,Y_{t-k}\}=\{\begin{array}{ll}\frac{{\theta }_1}{1+{\theta }_1^2}& k\le 1\\ 0& k>1\end{array}$$

Proof: Proposition 19.3

Proof. Let’s consider an MA(1) process $Y_t=\mu +{\theta }_1{u}_{t-1}+u_t$, where $u_t$ is a White Noise process (Equation 18.1). The expected value of $Y_t$ depends on the intercept $\mu$, i.e. $$\mathbb{E}\{Y_t\}=\mu +{\theta }_1\mathbb{E}\{u_{t-1}\}+\mathbb{E}\{u_t\}=\mu \text{.}$$ Under the White Noise assumption the residuals are uncorrelated, hence the variance is computed as $$\begin{array}{rl}{\gamma }_0& =\mathbb{V}\{\mu +u_t+{\theta }_1{u}_{t-1}\}=\\ & =\mathbb{V}\{u_t+{\theta }_1{u}_{t-1}\}=\\ & =\mathbb{V}\{u_t\}+{\theta }_1^2\mathbb{V}\{u_{t-1}\}=\\ & ={\sigma }_{\text{u}}^2+{\theta }_1^2{\sigma }_{\text{u}}^2=\\ & ={\sigma }_{\text{u}}^2(1+{\theta }_1^2)\end{array}$$ By definition, the autocovariance function between time $t$ and a generic lagged value $t-k$ reads $$\begin{array}{rl}{\gamma }_k& =\mathbb{C}v\{Y_t,Y_{t-k}\}\\ & =\mathbb{E}\{Y_t{Y}_{t-k}\}-\mathbb{E}\{Y_t\}\mathbb{E}\{Y_{t-k}\}=\\ & =\mathbb{E}\{(\mu +u_t+{\theta }_1{u}_{t-1})(\mu +u_{t-k}+{\theta }_1{u}_{t-k-1})\}-{\mu }^2=\\ & =\mathbb{E}\{u_t{u}_{t-k}\}+{\theta }_1\mathbb{E}\{u_{t-k}{u}_{t-1}\}+{\theta }_1\mathbb{E}\{u_t{u}_{t-k-1}\}+{\theta }_1^2\mathbb{E}\{u_{t-1}{u}_{t-k-1}\}+\\ & +{\mu }^2+\mu \mathbb{E}\{u_{t-k}\}+\mu {\theta }_1\mathbb{E}\{u_{t-k-1}\}+\mu \mathbb{E}\{u_t\}+\mu {\theta }_1\mathbb{E}\{u_{t-1}\}=\\ & ={\theta }_1\mathbb{E}\{u_{t-k}{u}_{t-1}\}\end{array}$$ This is a consequence of $u_t$ being a White Noise and so uncorrelated in time, i.e. $\mathbb{E}\{u_t{u}_{t-k}\}=0$ for every $t$. This implies that, also the correlation between two lags is zero if $k>1$.

Example: stationary MA(1)

Example 19.1 Under the assumption that the residuals are Gaussian, i.e. $u_t\sim \mathcal{N}(0,{\sigma }_{\text{u}}^2)$, we can simulate scenarios of a moving-average process of order 1 of the form $$\begin{array}{}\text{(19.2)}& Y_t\sim \text{MA}(1)⟺Y_t=\mu +{\theta }_1{u}_{t-1}+u_t\text{.}\end{array}$$

set.seed(1) # random seed
# *************************************************
#                      Inputs
# *************************************************
# Number of steps
t_bar <- 100000
# Long term mean
mu <- 1
# MA parameters
theta <- c(theta1 = 0.15)
# Variance residuals
sigma2_u <- 1
# *************************************************
#                    Simulation
# *************************************************
# Initialization
Yt <- c(mu)
# Simulated residuals
u_t <- rnorm(t_bar, 0, sqrt(sigma2_u))
# Simulated MA(1) process
for(t in 2:t_bar){
  Yt[t] <- mu + theta[1]*u_t[t-1] + u_t[t]
}

1

Next step dynamics from Equation 19.2.

Figure 19.1: Simulation of an MA(1) process with long term expected value (red, top) and empiric autocovariance for the first 30 lag.(bottom).

In Table 19.1 we compute the expectation, variance and covariance on simulated values and according to the formulas in Proposition 19.3.

# Expectation
e_x <- c(mu, mean(Yt))
# Variance
v_x <- c(sigma2_u * (1 + theta[1]^2), var(Yt))
# Covariace
cv_x <- c(sigma2_u * theta[1], cov(Yt[-1], lag(Yt,1)[-1]))
# Correlation
cr_x <- c(theta[1]/(1 + theta[1]^2), cor(Yt[-1], lag(Yt,1)[-1]))

Statistic	Formula	Monte Carlo	|Error|
$\mathbb{E}\{Y_t\}$	1.0000000	0.9974245	0.258%
$\mathbb{V}\{Y_t\}$	1.0225000	1.0301274	-0.74%
$\mathbb{C}v\{Y_t,Y_{t-1}\}$	0.1500000	0.1513608	-0.899%
$\mathbb{C}r\{Y_t,Y_{t-1}\}$	0.1466993	0.1469331	-0.159%

Table 19.1: Empiric and theoric expectation, variance, covariance and correlation (first lag) for a stationary MA(1) process.

19.2 AR(P)

In time series analysis an univariate time series $Y_t$ is defined as Autoregressive process of order p (AR(p)), when it satisfy the equations of the differences, i.e.  $$\begin{array}{}\text{(19.3)}& Y_t={\varphi }_1{Y}_{t-1}+\cdots +{\varphi }_p{Y}_{t-p}+u_t\text{,}\end{array}$$ where $p$ defines the order of the process and $u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2)$. In compact form: $$Y_t=\sum _{i=1}^p{\varphi }_i{Y}_{t-i}+u_t\text{.}$$ An Autoregressive process can be equivalently expressed in terms of the polynomial operator, i.e.  $$\mathrm{\Phi }(L)Y_t=u_t\text{,}\mathrm{\Phi }(L)=1-{\varphi }_{1}L-\cdots -{\varphi }_p{L}^p\text{.}$$ From Section 18.3.1 it follows that it exists a stationary AR(p) process if and only if all the solutions of the characteristic equations, i.e. $\mathrm{\Phi }(z)=0$, are greater than 1 in absolute value. In such case the AR(p) process admits an equivalent representation in terms of MA($\mathrm{\infty }$), i.e.  $$\begin{array}{rl}{Y}_t& =\mathrm{\Phi }(L{)}^{-1}{u}_t=\frac{1}{1-{\varphi }_{1}L-\cdots -{\varphi }_p{L}^p}{u}_t\\ & =(1+{\psi }_{1}L+{\psi }_2{L}^2+\dots )=\sum _{i=1}^{\mathrm{\infty }}{\psi }_i{u}_{t-i}\text{.}\end{array}$$

Proposition 19.4 ($\mathbf{\text{Expectation of an AR(p)}}$)
The unconditional expected value of a stationary AR(p) process reads $$\mathbb{E}\{Y_t\}=\frac{\mu }{1-\sum _{i=1}^p{\varphi }_i}\text{.}$$

Proof: Proposition 19.4

Proof. Let’s consider an AR(p) process $Y_t$, then the unconditional expectation of the process is computed as $$\begin{array}{rl}\mathbb{E}\{Y_t\}& =\mathbb{E}\{\mu +\sum _{i=1}^p{\varphi }_i{Y}_{t-i}+u_t\}=\\ & =\mu +\sum _{i=1}^q{\varphi }_i\mathbb{E}\{Y_{t-i}\}+\mathbb{E}\{u_t\}=\\ & =\mu +\sum _{i=1}^q{\varphi }_i\mathbb{E}\{Y_t\}\end{array}$$ Since, under the assumption of stationarity the long term expectation of $\mathbb{E}\{Y_{t-i}\}$ is the same as the long term expectation of $\mathbb{E}\{Y_t\}$. Hence, solving for the expected value one obtain: $$\mathbb{E}\{Y_t\}(1-\sum _{i=1}^p{\varphi }_i)=\mu ⟹\mathbb{E}\{Y_t\}=\frac{\mu }{1-\sum _{i=1}^p{\varphi }_i}\text{.}$$

If the AR(p) process is stationary, the covariance function satisfies the recursive relation, i.e.  $$\{\begin{array}{l}{\gamma }_k-{\varphi }_1{\gamma }_{k-1}-\cdots -{\varphi }_{k-p}{\gamma }_{k-p}=0\\ ⋮\\ {\gamma }_0={\varphi }_1{\gamma }_1+\cdots +{\varphi }_p{\gamma }_p+{\sigma }_{\text{u}}^2\end{array}$$ where ${\gamma }_{-k}={\gamma }_k$. For $k=0,\dots ,p$ the above equations forms a system of $p+1$ linear equations in $p+1$ unknowns ${\gamma }_0,\dots ,{\gamma }_p$, also known as Yule-Walker equations.

Proposition 19.5 ($\mathbf{\text{Variance of an AR(1)}}$)
Let’s consider an AR(1) model without intercept so that $\mathbb{E}\{Y_t\}=0$. Then, its covariance function reads: $${\gamma }_k=\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}{\varphi }_1^k={\gamma }_0{\varphi }_1^k\text{.}$$

Proof: Proposition 19.5

Proof. Let’s consider an AR(1) model without intercept so that $\mathbb{E}\{Y_t\}=0$, i.e. $$Y_t={\varphi }_1{Y}_{t-1}+u_t\text{.}$$ The proof of the covariance function is divided in two parts. Firstly, we compute the variance and covariances of the AR(1) model. Then, we set the system and we solve it. Notably, the variance of $Y_t$ reads: $$\begin{array}{}\text{(19.4)}& \begin{array}{rl}{\gamma }_0=\mathbb{V}\{Y_t\}& =\mathbb{E}\{Y_t^2\}-\mathbb{E}\{Y_t{\}}^2=\mathbb{E}\{Y_t^2\}=\\ & =\mathbb{E}\{Y_t({\varphi }_1{Y}_{t-1}+u_t)\}=\\ & ={\varphi }_1\mathbb{E}\{Y_t{Y}_{t-1}\}+\mathbb{E}\{Y_t{u}_t\}=\\ & ={\varphi }_1{\gamma }_1+{\sigma }_{\text{u}}^2\end{array}\end{array}$$ remembering that $\mathbb{E}\{Y_t{u}_t\}=\mathbb{E}\{u_t^2\}$. The covariance with first lag, namely ${\gamma }_1$ is computed as: $$\begin{array}{}\text{(19.5)}& \begin{array}{rl}{\gamma }_1=\mathbb{C}v\{Y_t,Y_{t-1}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+u_t)Y_{t-1}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}^2\}={\varphi }_1{\gamma }_0\end{array}\end{array}$$ The Yule-Walker system is given by Equation 19.4, Equation 19.5, i.e.  $$\{\begin{array}{ll}{\gamma }_0={\varphi }_1{\gamma }_1+{\sigma }_{\text{u}}^2& (L_0)\\ {\gamma }_1={\varphi }_1{\gamma }_0& (L_1)\end{array}$$ In order to solve the system, let’s substitute ${\gamma }_1$ (Equation 19.5) in ${\gamma }_0$ (Equation 19.4) and solve for ${\gamma }_0$, i.e.  $$\{\begin{array}{ll}{\gamma }_0={\varphi }_1^2{\gamma }_0+{\sigma }_{\text{u}}^2=\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}& (L_0)\\ {\gamma }_1={\varphi }_1\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}& (L_1)\end{array}$$ Hence, by the relation ${\gamma }_k={\varphi }_1{\gamma }_{k-1}$ the covariance reads explicitly: $${\gamma }_k=\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}{\varphi }_1^k={\gamma }_0{\varphi }_1^k\text{.}$$

Proposition 19.6 ($\mathbf{\text{Variance of an AR(2)}}$)
Let’s consider an AR(2) model without intercept so that $\mathbb{E}\{Y_t\}=0$. Then, its covariance function reads: $${\gamma }_k=\{\begin{array}{ll}{\gamma }_0={\psi }_0{\sigma }_{\text{u}}^2& k=0\\ {\gamma }_1={\psi }_1{\gamma }_0& k=1\\ {\gamma }_2={\psi }_2{\gamma }_0& k=2\\ {\gamma }_k={\varphi }_1{\gamma }_{k-1}+{\varphi }_2{\gamma }_{k-2}& k\ge 3\end{array}$$ where $$\begin{array}{rl}& {\psi }_0=(1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2{)}^{-1}\\ & {\psi }_1={\varphi }_1(1-{\varphi }_2{)}^{-1}\\ & {\psi }_2={\psi }_1{\varphi }_1+{\varphi }_2\end{array}$$

Proof: Proposition 19.6

Proof. Let’s consider an AR(2) model without intercept so that $\mathbb{E}\{Y_t\}=0$, i.e. $$Y_t={\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+u_t\text{.}$$ The proof of the covariance function is divided in two parts. Firstly, we compute the variance and covariances of the AR(2) model. Then, we set the system and we solve it. Notably, the variance of $Y_t$ reads: $$\begin{array}{}\text{(19.6)}& \begin{array}{rl}{\gamma }_0=\mathbb{V}\{Y_t\}& =\mathbb{E}\{Y_t^2\}-\mathbb{E}\{Y_t{\}}^2=\mathbb{E}\{Y_t^2\}=\\ & =\mathbb{E}\{Y_t({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+u_t)\}=\\ & ={\varphi }_1\mathbb{E}\{Y_t{Y}_{t-1}\}+{\varphi }_2\mathbb{E}\{Y_t{Y}_{t-2}\}+\mathbb{E}\{Y_t{u}_t\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\sigma }_{\text{u}}^2\end{array}\end{array}$$ remembering that $\mathbb{E}\{Y_t{u}_t\}=\mathbb{E}\{u_t^2\}$. The covariance with first lag, namely ${\gamma }_1$ is computed as: $$\begin{array}{}\text{(19.7)}& \begin{array}{rl}{\gamma }_1=\mathbb{C}v\{Y_t,Y_{t-1}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+u_t)Y_{t-1}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}^2\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-1}\}=\\ & ={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1\end{array}\end{array}$$ The covariance with second lag, namely ${\gamma }_2$ is computed as: $$\begin{array}{}\text{(19.8)}& \begin{array}{rl}{\gamma }_2=\mathbb{C}v\{Y_t,Y_{t-1}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+u_t)Y_{t-2}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-2}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}^2\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0\end{array}\end{array}$$

The Yule-Walker system is given by Equation 19.6, Equation 19.7 and Equation 19.8, i.e.  $$\{\begin{array}{ll}{\gamma }_0={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\sigma }_{\text{u}}^2& (L_0)\\ {\gamma }_1={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1& (L_1)\\ {\gamma }_2={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0& (L_2)\end{array}$$ In order to solve the system, let’s start by solving for ${\gamma }_1$ (Equation 19.7) in terms of ${\gamma }_0$ in $L_1$, i.e. $$\begin{array}{}\text{(19.9)}& {\gamma }_1=\underset{{\psi }_1}{\underbrace{\left(\frac{{\varphi }_1}{1-{\varphi }_2}\right)}}{\gamma }_0={\psi }_1{\gamma }_0\text{.}\end{array}$$ Substituting ${\gamma }_1$ from Equation 19.9 into ${\gamma }_2$ (Equation 19.8) in $L_2$ gives: $$\begin{array}{}\text{(19.10)}& {\gamma }_2=\underset{{\psi }_2}{\underbrace{({\psi }_1{\varphi }_1+{\varphi }_2)}}{\gamma }_0={\psi }_2{\gamma }_0\text{.}\end{array}$$ Finally, substituting ${\gamma }_1$ (Equation 19.9) and ${\gamma }_2$ (Equation 19.10) into ${\gamma }_0$ (Equation 19.6) in $L_0$ gives an explicit expression of the variance of $Y_t$, i.e.  $${\gamma }_0=\underset{{\psi }_0}{\underbrace{\frac{1}{1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2}}}{\sigma }_{\text{u}}^2={\psi }_0{\sigma }_{\text{u}}^2\text{.}$$

# Formula for the variance
AR2_variance <- function(phi, sigma2){
  psi_1 <- phi[1] / (1 - phi[2])
  psi_2 <- psi_1 * phi[1] + phi[2]
  psi_0 <- 1 / (1 - phi[1] * psi_1 - phi[2]*psi_2)
  sigma2 * psi_0
}
# Formula for the covariance
AR2_covariance <- function(phi, sigma2, lags = 1){
  # Reparametrize coefficients
  psi1 = phi[1] / (1 - phi[2])
  psi2 = phi[1] * psi1 + phi[2]
  # Initialize variance-covariance
  gamma <- c()
  # Variance
  gamma[1] <- sigma2/(1 - phi[1]*psi1 - phi[2]*psi2)
  # Covariance first lag
  gamma[2] <- psi1 * gamma[1]
  # Covariance second lag
  gamma[3] <- psi2 * gamma[1]
  # Iterative formula for lags > 2
  covariance <- function(gamma, phi, k = 1){
    if (k <= 2){
      return(gamma[k+1])
    }
    gamma <- c(gamma)
    for(i in 3:k){
      gamma[i+1] <- phi[1]*gamma[i] + phi[2]*gamma[i-1]
    }
    return(gamma[k+1])
  }
  cv <- c(gamma[1])
  if(lags == 0){
    return(cv)
  }
  for(lag in 1:lags) {
    cv[lag+1] <- covariance(gamma, phi, k = lag)
  }
  return(cv)
}
# Simulation of a Gaussian AR(2)
AR2_simulate <- function(n, phi = c(0.5, 0.2), sigma2 = 1){
  eps <- rnorm(n, sd = sqrt(sigma2))
  x <- eps
  for(t in 3:n){
    x[t] <- phi[1]*x[t-1] + phi[2]*x[t-2] + eps[t]
  }
  return(x)
}

# *************************************************
#                      Inputs
# *************************************************
# Numer of simulations
nsim <- 500
# Horizon for each simulation
t_bar <- 100000
# AR(2) parameters
phi <- c(0.3, 0.1)
# Variance of the residuals
sigma2 <- 1
# *************************************************
scenarios <- purrr::map(1:nsim, ~AR2_simulate(t_bar, phi, sigma2))
# Compute variance and covariances with Monte Carlo
v_mc <- mean(purrr::map_dbl(scenarios, ~var(.x)))
cv_mc_L1 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-1], lag(.x, 1)[-1])))
cv_mc_L2 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1,2)], lag(.x, 2)[-c(1,2)])))
cv_mc_L3 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:3)], lag(.x, 3)[-c(1:3)])))
cv_mc_L4 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:4)], lag(.x, 4)[-c(1:4)])))
cv_mc_L5 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:5)], lag(.x, 5)[-c(1:5)])))
# Compute variance and covariances with Formulas
v_mod <- AR2_variance(phi, sigma2)
cv_mod_L1 <- AR2_covariance(phi, sigma2, lags = 1)[2]
cv_mod_L2 <- AR2_covariance(phi, sigma2, lags = 2)[3]
cv_mod_L3 <- AR2_covariance(phi, sigma2, lags = 3)[4]
cv_mod_L4 <- AR2_covariance(phi, sigma2, lags = 4)[5]
cv_mod_L5 <- AR2_covariance(phi, sigma2, lags = 5)[6]

Covariance	Formula	MonteCarlo
$\mathbb{V}\{Y_t\}$	1.1363636	1.1366947
$\mathbb{C}v\{Y_t,Y_{t-1}\}$	0.3787879	0.3790032
$\mathbb{C}v\{Y_t,Y_{t-2}\}$	0.2272727	0.2274017
$\mathbb{C}v\{Y_t,Y_{t-3}\}$	0.1060606	0.1064418
$\mathbb{C}v\{Y_t,Y_{t-4}\}$	0.0545455	0.0548409
$\mathbb{C}v\{Y_t,Y_{t-5}\}$	0.0269697	0.0271296

Table 19.2: Theoric long term variance and covariances computed on 500 Monte Carlo simulations (t = 100000).

Proposition 19.7 ($\mathbf{\text{Variance of an AR(3)}}$)
Let’s consider an AR(3) model without intercept so that $\mathbb{E}\{Y_t\}=0$. Then, its covariance function reads: $${\gamma }_k=\{\begin{array}{ll}{\gamma }_0={\psi }_0{\sigma }_{\text{u}}^2& k=0\\ {\gamma }_1={\psi }_1{\gamma }_0& k=1\\ {\gamma }_2={\psi }_2{\gamma }_0& k=2\\ {\gamma }_3={\psi }_3{\gamma }_0& k=3\\ {\gamma }_k={\varphi }_1{\gamma }_{k-1}+{\varphi }_2{\gamma }_{k-2}+{\varphi }_3{\gamma }_{k-3}& k\ge 4\end{array}$$ where $$\begin{array}{rl}& {\psi }_0=(1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2-{\varphi }_3{\psi }_3{)}^{-1}\\ & {\psi }_1=({\varphi }_1+{\varphi }_2{\varphi }_3)(1-{\varphi }_2-{\varphi }_3^2-{\varphi }_1{\varphi }_3{)}^{-1}\\ & {\psi }_2={\varphi }_1{\psi }_1+{\varphi }_3{\psi }_1+{\varphi }_2\\ & {\psi }_3={\varphi }_1{\psi }_2+{\varphi }_2{\psi }_1+{\varphi }_3\end{array}$$

Proof: Proposition 19.7

Proof. Let’s consider an AR(3) model without intercept so that $\mathbb{E}\{Y_t\}=0$, i.e. $$Y_t={\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+u_t\text{,}$$ where $u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2)$. Notably, the variance is computed as: $$\begin{array}{}\text{(19.11)}& \begin{array}{rl}{\gamma }_0=\mathbb{V}\{Y_t\}& =\mathbb{E}\{Y_t^2\}-\mathbb{E}\{Y_t{\}}^2=\\ & =\mathbb{E}\{Y_t^2\}=\\ & =\mathbb{E}\{Y_t({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+u_t)\}=\\ & ={\varphi }_1\mathbb{E}\{Y_t{Y}_{t-1}\}+{\varphi }_2\mathbb{E}\{Y_t{Y}_{t-2}\}+{\varphi }_3\mathbb{E}\{Y_t{Y}_{t-3}\}+\mathbb{E}\{Y_t{u}_t\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_3+{\sigma }_{\text{u}}^2\end{array}\end{array}$$ remembering that $\mathbb{E}\{Y_t{u}_t\}=\mathbb{E}\{u_t^2\}$. The covariance with first lag, namely ${\gamma }_1$ is computed as: $$\begin{array}{}\text{(19.12)}& \begin{array}{rl}{\gamma }_1=\mathbb{C}v\{Y_t,Y_{t-1}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+u_t)Y_{t-1}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}^2\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-1}\}+{\varphi }_3\mathbb{E}\{Y_{t-3}{Y}_{t-1}\}=\\ & ={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1+{\varphi }_2{\gamma }_2\end{array}\end{array}$$ The covariance with second lag, namely ${\gamma }_2$ is computed as: $$\begin{array}{}\text{(19.13)}& \begin{array}{rl}{\gamma }_2=\mathbb{C}v\{Y_t,Y_{t-2}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+u_t)Y_{t-2}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-2}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}^2\}+{\varphi }_3\mathbb{E}\{Y_{t-3}{Y}_{t-2}\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0+{\varphi }_3{\gamma }_1\end{array}\end{array}$$ The covariance with third lag, namely ${\gamma }_3$ is computed as: $$\begin{array}{}\text{(19.14)}& \begin{array}{rl}{\gamma }_3=\mathbb{C}v\{Y_t,Y_{t-3}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+u_t)Y_{t-3}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-3}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-3}\}+{\varphi }_3\mathbb{E}\{Y_{t-3}^2\}=\\ & ={\varphi }_1{\gamma }_2+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_0\end{array}\end{array}$$ The Yule-Walker system is given by Equation 19.11, Equation 19.12, Equation 19.13 and Equation 19.14 reads $$\{\begin{array}{ll}{\gamma }_0={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_3+{\sigma }_{\text{u}}^2& (L_0)\\ {\gamma }_1={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_2& (L_1)\\ {\gamma }_2={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0+{\varphi }_3{\gamma }_1& (L_2)\\ {\gamma }_3={\varphi }_1{\gamma }_2+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_0& (L_3)\end{array}$$ Let’s start by expressing ${\gamma }_2$ (Equation 19.13) in terms of ${\gamma }_1$ and ${\gamma }_0$ from $L_2$, i.e.  $$\begin{array}{}\text{(19.15)}& {\gamma }_2=({\varphi }_1+{\varphi }_3){\gamma }_1+{\varphi }_2{\gamma }_0\text{,}\end{array}$$ and let’s substitute the above expression of ${\gamma }_2$ (Equation 19.15) in ${\gamma }_1$ (Equation 19.12) from $L_1$, i.e.  $${\gamma }_1={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1+{\varphi }_3({\varphi }_1+{\varphi }_3){\gamma }_1+{\varphi }_3{\varphi }_2{\gamma }_0\text{.}$$ At this point ${\gamma }_1$ depends only on ${\gamma }_0$, hence we can solve it: $$\begin{array}{}\text{(19.16)}& {\gamma }_1=\underset{{\psi }_1}{\underbrace{\frac{{\varphi }_1+{\varphi }_2{\varphi }_3}{1-{\varphi }_2-{\varphi }_3^2-{\varphi }_1{\varphi }_3}}}{\gamma }_0={\psi }_1{\gamma }_0\text{.}\end{array}$$ With ${\gamma }_1$ solved, one can come back to the expression of ${\gamma }_2$ (Equation 19.15) and substitute the result in ${\gamma }_1$ (Equation 19.16) obtaining an explicit expression for ${\gamma }_2$, i.e. $$\begin{array}{}\text{(19.17)}& {\gamma }_2=\underset{{\psi }_2}{\underbrace{({\varphi }_1{\psi }_1+{\varphi }_3{\psi }_1+{\varphi }_2)}}{\gamma }_0={\psi }_2{\gamma }_0\text{.}\end{array}$$ Substituting the explicit expressions of ${\gamma }_2$ (Equation 19.17) and ${\gamma }_1$ (Equation 19.16) into ${\gamma }_3$ (Equation 19.14) completes the system, i.e.  $$\begin{array}{}\text{(19.18)}& {\gamma }_3=\underset{{\psi }_3}{\underbrace{({\varphi }_1{\psi }_2+{\varphi }_2{\psi }_1+{\varphi }_3)}}{\gamma }_0={\psi }_3{\gamma }_0\text{.}\end{array}$$ Finally, substituting ${\gamma }_1$ (Equation 19.16), ${\gamma }_2$ (Equation 19.17) and ${\gamma }_3$ (Equation 19.18) in ${\gamma }_0$ (Equation 19.11) gives the variance, i.e.  $$\begin{array}{}\text{(19.19)}& {\gamma }_0=\underset{{\psi }_0}{\underbrace{\frac{1}{1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2-{\varphi }_3{\psi }_3}}}{\sigma }_{\text{u}}^2\text{.}\end{array}$$ and $$\begin{array}{rl}& {\psi }_0=(1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2-{\varphi }_3{\psi }_3{)}^{-1}\\ & {\psi }_1=({\varphi }_1+{\varphi }_2{\varphi }_3)(1-{\varphi }_2-{\varphi }_3^2-{\varphi }_1{\varphi }_3{)}^{-1}\\ & {\psi }_2={\varphi }_1{\psi }_1+{\varphi }_3{\psi }_1+{\varphi }_2\\ & {\psi }_3={\varphi }_1{\psi }_2+{\varphi }_2{\psi }_1+{\varphi }_3\end{array}$$

# Formula for the variance
AR3_variance <- function(phi, sigma2){
  psi1 <- (phi[1] + phi[2]*phi[3]) / (1 - phi[2] - phi[3]^2 - phi[1]*phi[3])
  psi2 <- phi[1] * psi1 + phi[3] * psi1 + phi[2]
  psi3 <- phi[1] * psi2 + phi[2] * psi1 + phi[3]
  psi0 <- 1 / (1 - phi[1]*psi1 - phi[2]*psi2 - phi[3]*psi3)
  sigma2 * psi0
}
# Formula for the covariance
AR3_covariance <- function(phi, sigma2, lags = 1){
  # Reparametrize coefficients
  psi1 <- (phi[1] + phi[2]*phi[3]) / (1 - phi[2] - phi[3]^2 - phi[1]*phi[3])
  psi2 <- phi[1] * psi1 + phi[3] * psi1 + phi[2]
  psi3 <- phi[1] * psi2 + phi[2] * psi1 + phi[3]
  psi0 <- 1 / (1 - phi[1]*psi1 - phi[2]*psi2 - phi[3]*psi3)
  # Initialize variance-covariance
  gamma <- c()
  # Variance
  gamma[1] <- sigma2 * psi0
  # Covariance first lag
  gamma[2] <- psi1 * gamma[1]
  # Covariance second lag
  gamma[3] <- psi2 * gamma[1]
  # Covariance third lag
  gamma[4] <- psi3 * gamma[1]
  # Iterative formula for lags > 2
  covariance <- function(gamma, phi, k = 1){
    if (k <= 3){
      return(gamma[k+1])
    }
    gamma <- c(gamma)
    for(i in 4:k){
      gamma[i+1] <- phi[1]*gamma[i] + phi[2]*gamma[i-1] + phi[3]*gamma[i-2]
    }
    return(gamma[k+1])
  }
  cv <- c(gamma[1])
  if(lags == 0){
    return(cv)
  }
  for(lag in 1:lags) {
    cv[lag+1] <- covariance(gamma, phi, k = lag)
  }
  return(cv)
}
# Simulation of a Gaussian AR(3)
AR3_simulate <- function(n, phi = c(0.5, 0.2, 0.1), sigma2 = 1){
  eps <- rnorm(n, sd = sqrt(sigma2))
  x <- eps
  for(t in 4:n){
    x[t] <- phi[1]*x[t-1] + phi[2]*x[t-2] + phi[3]*x[t-3] + eps[t]
  }
  return(x)
}

# *************************************************
#                      Inputs
# *************************************************
# Numer of simulations
nsim <- 500
# Horizon for each simulation
t_bar <- 100000
# AR(2) parameters
phi <- c(0.3, 0.1, 0.05)
# Variance of the residuals
sigma2 <- 1
# *************************************************
scenarios <- purrr::map(1:nsim, ~AR3_simulate(t_bar, phi, sigma2))
# Compute variance and covariances with Monte Carlo
v_mc <- mean(purrr::map_dbl(scenarios, ~var(.x)))
cv_mc_L1 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-1], lag(.x, 1)[-1])))
cv_mc_L2 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1,2)], lag(.x, 2)[-c(1,2)])))
cv_mc_L3 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:3)], lag(.x, 3)[-c(1:3)])))
cv_mc_L4 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:4)], lag(.x, 4)[-c(1:4)])))
cv_mc_L5 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:5)], lag(.x, 5)[-c(1:5)])))
# Compute variance and covariances with Formulas
v_mod <- AR3_variance(phi, sigma2)
cv_mod_L1 <- AR3_covariance(phi, sigma2, lags = 1)[2]
cv_mod_L2 <- AR3_covariance(phi, sigma2, lags = 2)[3]
cv_mod_L3 <- AR3_covariance(phi, sigma2, lags = 3)[4]
cv_mod_L4 <- AR3_covariance(phi, sigma2, lags = 4)[5]
cv_mod_L5 <- AR3_covariance(phi, sigma2, lags = 5)[6]

Covariance	Formula	MonteCarlo
$\mathbb{V}\{Y_t\}$	1.1538304	1.1539698
$\mathbb{C}v\{Y_t,Y_{t-1}\}$	0.3987743	0.3987340
$\mathbb{C}v\{Y_t,Y_{t-2}\}$	0.2549540	0.2548339
$\mathbb{C}v\{Y_t,Y_{t-3}\}$	0.1740552	0.1740382
$\mathbb{C}v\{Y_t,Y_{t-4}\}$	0.0976507	0.0976318
$\mathbb{C}v\{Y_t,Y_{t-5}\}$	0.0594484	0.0594063

Table 19.3: Theoric long term variance and covariances computed on 500 Monte Carlo simulations (t = 100000).

Proposition 19.8 ($\mathbf{\text{Variance of an AR(4)}}$)
Let’s consider an AR(4) model without intercept so that $\mathbb{E}\{Y_t\}=0$. Then, its covariance function reads: $${\gamma }_k=\{\begin{array}{ll}{\gamma }_0={\psi }_0{\sigma }_{\text{u}}^2& k=0\\ {\gamma }_1={\psi }_1{\gamma }_0& k=1\\ {\gamma }_2={\psi }_2{\gamma }_0& k=2\\ {\gamma }_3={\psi }_3{\gamma }_0& k=3\\ {\gamma }_4={\psi }_4{\gamma }_0& k=4\\ {\gamma }_k={\varphi }_1{\gamma }_{k-1}+{\varphi }_2{\gamma }_{k-2}+{\varphi }_3{\gamma }_{k-3}+{\varphi }_4{\gamma }_{k-4}& k\ge 5\end{array}$$ where $$\begin{array}{rl}& {\psi }_1=(\frac{{\varphi }_3{\varphi }_2}{1-{\varphi }_4}+\frac{{\varphi }_1{\varphi }_4{\varphi }_2}{1-{\varphi }_4}+{\varphi }_1+{\varphi }_3{\varphi }_4){(1-\frac{{\varphi }_3({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}-\frac{{\varphi }_1{\varphi }_4({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}-{\varphi }_2-{\varphi }_2{\varphi }_4-{\varphi }_4^2)}^{-1}\\ & {\psi }_2=\frac{{\psi }_1({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}+\frac{{\varphi }_2}{1-{\varphi }_4}\\ & {\psi }_3={\varphi }_1{\psi }_2+{\varphi }_2{\psi }_1+{\varphi }_3+{\varphi }_4{\psi }_1\\ & {\psi }_4={\varphi }_1{\psi }_3+{\varphi }_2{\psi }_2+{\varphi }_3{\psi }_1+{\varphi }_4\\ & {\psi }_0=(1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2-{\varphi }_3{\psi }_3-{\varphi }_4{\psi }_4{)}^{-1}\end{array}$$

Proof: Proposition 19.8

Proof. Let’s consider an AR(4) model without intercept so that $\mathbb{E}\{Y_t\}=0$, i.e. $$Y_t={\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t\text{,}$$ where $u_t\sim \text{WN}(0,{\sigma }_{\text{u}}^2)$. Notably, the variance is computed as: $$\begin{array}{}\text{(19.20)}& \begin{array}{rl}{\gamma }_0=\mathbb{V}\{Y_t\}& =\mathbb{E}\{Y_t^2\}-\mathbb{E}\{Y_t{\}}^2=\\ & =\mathbb{E}\{Y_t^2\}=\\ & =\mathbb{E}\{Y_t({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t)\}=\\ & ={\varphi }_1\mathbb{E}\{Y_t{Y}_{t-1}\}+{\varphi }_2\mathbb{E}\{Y_t{Y}_{t-2}\}+{\varphi }_3\mathbb{E}\{Y_t{Y}_{t-3}\}+{\varphi }_4\mathbb{E}\{Y_t{Y}_{t-4}\}+\mathbb{E}\{Y_t{u}_t\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_3+{\varphi }_4{\gamma }_4+{\sigma }_{\text{u}}^2\end{array}\end{array}$$ remembering that $\mathbb{E}\{Y_t{u}_t\}=\mathbb{E}\{u_t^2\}$. The covariance with first lag, namely ${\gamma }_1$ is computed as: $$\begin{array}{}\text{(19.21)}& \begin{array}{rl}{\gamma }_1=\mathbb{C}v\{Y_t,Y_{t-1}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t)Y_{t-1}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}^2\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-1}\}+{\varphi }_3\mathbb{E}\{Y_{t-3}{Y}_{t-1}\}+{\varphi }_4\mathbb{E}\{Y_{t-4}{Y}_{t-1}\}=\\ & ={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_3\end{array}\end{array}$$ The covariance with second lag, namely ${\gamma }_2$ is computed as: $$\begin{array}{}\text{(19.22)}& \begin{array}{rl}{\gamma }_2=\mathbb{C}v\{Y_t,Y_{t-2}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t)Y_{t-2}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-2}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}^2\}+{\varphi }_3\mathbb{E}\{Y_{t-3}{Y}_{t-2}\}+{\varphi }_4\mathbb{E}\{Y_{t-4}{Y}_{t-2}\}=\\ & ={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0+{\varphi }_3{\gamma }_1+{\varphi }_4{\gamma }_2\end{array}\end{array}$$ The covariance with third lag, namely ${\gamma }_3$ is computed as: $$\begin{array}{}\text{(19.23)}& \begin{array}{rl}{\gamma }_3=\mathbb{C}v\{Y_t,Y_{t-3}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t)Y_{t-3}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-3}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-3}\}+{\varphi }_3\mathbb{E}\{Y_{t-3}^2\}+{\varphi }_4\mathbb{E}\{Y_{t-4}{Y}_{t-3}\}=\\ & ={\varphi }_1{\gamma }_2+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_0+{\varphi }_4{\gamma }_1\end{array}\end{array}$$ The covariance with fourth lag, namely ${\gamma }_4$ is computed as: $$\begin{array}{}\text{(19.24)}& \begin{array}{rl}{\gamma }_4=\mathbb{C}v\{Y_t,Y_{t-4}\}& =\mathbb{E}\{({\varphi }_1{Y}_{t-1}+{\varphi }_2{Y}_{t-2}+{\varphi }_3{Y}_{t-3}+{\varphi }_4{Y}_{t-4}+u_t)Y_{t-4}\}=\\ & ={\varphi }_1\mathbb{E}\{Y_{t-1}{Y}_{t-4}\}+{\varphi }_2\mathbb{E}\{Y_{t-2}{Y}_{t-4}\}+{\varphi }_3\mathbb{E}\{Y_{t-3}{Y}_{t-4}\}+{\varphi }_4\mathbb{E}\{Y_{t-4}^4\}=\\ & ={\varphi }_1{\gamma }_3+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_1+{\varphi }_4{\gamma }_0\end{array}\end{array}$$ The Yule-Walker system is given by Equation 19.20, Equation 19.21 and Equation 19.22, Equation 19.23, Equation 19.24 reads
$$\{\begin{array}{ll}{\gamma }_0={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_3+{\varphi }_4{\gamma }_4+{\sigma }_{\text{u}}^2& (L_0)\\ {\gamma }_1={\varphi }_1{\gamma }_0+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_2+{\varphi }_4{\gamma }_3& (L_1)\\ {\gamma }_2={\varphi }_1{\gamma }_1+{\varphi }_2{\gamma }_0+{\varphi }_3{\gamma }_1+{\varphi }_4{\gamma }_2& (L_2)\\ {\gamma }_3={\varphi }_1{\gamma }_2+{\varphi }_2{\gamma }_1+{\varphi }_3{\gamma }_0+{\varphi }_4{\gamma }_1& (L_3)\\ {\gamma }_4={\varphi }_1{\gamma }_3+{\varphi }_2{\gamma }_2+{\varphi }_3{\gamma }_1+{\varphi }_4{\gamma }_0& (L_4)\end{array}$$ To solve the system, let’s substitue ${\gamma }_1$ (Equation 19.21) into ${\gamma }_2$ (Equation 19.22) and recover ${\gamma }_2$ in terms of ${\gamma }_0$, i.e. $$\begin{array}{}\text{(19.25)}& {\gamma }_2=\frac{{\varphi }_1+{\varphi }_3}{1-{\varphi }_4}{\gamma }_1+\frac{{\varphi }_2}{1-{\varphi }_4}{\gamma }_0\text{.}\end{array}$$ Then, substitute ${\gamma }_3$ (Equation 19.23) into ${\gamma }_1$ (Equation 19.21), i.e. $$\begin{array}{}\text{(19.26)}& {\gamma }_1=({\varphi }_3+{\varphi }_1{\varphi }_4){\gamma }_2+({\varphi }_2+{\varphi }_2{\varphi }_4+{\varphi }_4^2){\gamma }_1+({\varphi }_1+{\varphi }_3{\varphi }_4){\gamma }_0\text{.}\end{array}$$ Then, substitute ${\gamma }_2$ (Equation 19.25) into the previous expression for ${\gamma }_1$ (Equation 19.26), i.e. $$\begin{array}{rl}{\gamma }_1& =(\frac{{\varphi }_3({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}+\frac{{\varphi }_1{\varphi }_4({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}+{\varphi }_2+{\varphi }_2{\varphi }_4+{\varphi }_4^2){\gamma }_1+\\ & +(\frac{{\varphi }_3{\varphi }_2}{1-{\varphi }_4}+\frac{{\varphi }_1{\varphi }_4{\varphi }_2}{1-{\varphi }_4}+{\varphi }_1+{\varphi }_3{\varphi }_4){\gamma }_0\end{array}$$ Hence, recovering ${\gamma }_1$ one obtain: $$\begin{array}{}\text{(19.27)}& {\gamma }_1=\underset{{\psi }_1}{\underbrace{\left(\frac{\frac{{\varphi }_3{\varphi }_2}{1-{\varphi }_4}+\frac{{\varphi }_1{\varphi }_4{\varphi }_2}{1-{\varphi }_4}+{\varphi }_1+{\varphi }_3{\varphi }_4}{1-\frac{{\varphi }_3({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}-\frac{{\varphi }_1{\varphi }_4({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}-{\varphi }_2-{\varphi }_2{\varphi }_4-{\varphi }_4^2}\right)}}{\gamma }_0={\psi }_1{\gamma }_0\text{.}\end{array}$$ Substituting ${\gamma }_1$ (Equation 19.27) into ${\gamma }_2$ (Equation 19.25) gives $$\begin{array}{}\text{(19.28)}& {\gamma }_2=\underset{{\psi }_2}{\underbrace{(\frac{{\psi }_1({\varphi }_1+{\varphi }_3)}{1-{\varphi }_4}+\frac{{\varphi }_2}{1-{\varphi }_4})}}{\gamma }_0={\psi }_2{\gamma }_0\text{.}\end{array}$$ Then, let’s rewrite ${\gamma }_3$ (Equation 19.23) substituting ${\gamma }_1$ (Equation 19.27) and ${\gamma }_2$ (Equation 19.28), i.e.  $$\begin{array}{}\text{(19.29)}& {\gamma }_3=\underset{{\psi }_3}{\underbrace{({\varphi }_1{\psi }_2+{\varphi }_2{\psi }_1+{\varphi }_3+{\varphi }_4{\psi }_1)}}{\gamma }_0={\psi }_3{\gamma }_0\text{.}\end{array}$$ Finally, substituting ${\gamma }_1$ (Equation 19.27), ${\gamma }_2$ (Equation 19.28) and ${\gamma }_3$ (Equation 19.29) into ${\gamma }_4$ (Equation 19.24) gives: $$\begin{array}{}\text{(19.30)}& {\gamma }_4=\underset{{\psi }_4}{\underbrace{({\varphi }_1{\psi }_3+{\varphi }_2{\psi }_2+{\varphi }_3{\psi }_1+{\varphi }_4)}}{\gamma }_0={\psi }_4{\gamma }_0\text{.}\end{array}$$ Finally, substituting ${\gamma }_1$ (Equation 19.27), ${\gamma }_2$ (Equation 19.28) and ${\gamma }_3$ (Equation 19.29) and ${\gamma }_4$ (Equation 19.30) into ${\gamma }_0$ (Equation 19.20) gives the variance, i.e. $$\begin{array}{}\text{(19.31)}& {\gamma }_0=\underset{{\psi }_0}{\underbrace{\frac{1}{1-{\varphi }_1{\psi }_1-{\varphi }_2{\psi }_2-{\varphi }_3{\psi }_3-{\varphi }_4{\psi }_4}}}{\sigma }_{\text{u}}^2\text{.}\end{array}$$

# Formula for the covariance
AR4_covariance <- function(phi, sigma2, lags = 1){
  phi1_ast <- (phi[1] + phi[3]) / (1-phi[4])
  phi2_ast <- phi[2] / (1-phi[4])
  # Reparametrization psi
  psi1 <- (phi[3]*phi2_ast + phi2_ast*phi[1]*phi[4] + phi[1] + phi[3]*phi[4]) /
    (1 - phi[3]*phi1_ast - phi[1]*phi[4] * phi1_ast - phi[2] - phi[2]*phi[3] - phi[4]^2)
  psi2 <- psi1 * phi1_ast + phi2_ast
  psi3 <- phi[1]*psi2 + phi[2]*psi1 + phi[3] + phi[4]*psi1
  psi4 <- phi[1]*psi3 + phi[2]*psi2 + phi[3]*psi1 + phi[4]
  psi0 <- 1 / (1 - phi[1]*psi1 - phi[2]*psi2 - phi[3]*psi3 - phi[4]*psi4)
  # Initialize variance-covariance
  gamma <- c()
  # Variance
  gamma[1] <- sigma2 * psi0
  # Covariance first lag
  gamma[2] <- psi1 * gamma[1]
  # Covariance second lag
  gamma[3] <- psi2 * gamma[1]
  # Covariance third lag
  gamma[4] <- psi3 * gamma[1]
   # Covariance fourth lag
  gamma[5] <- psi4 * gamma[1]
  # Iterative formula for lags > 2
  covariance <- function(gamma, phi, k = 1){
    if (k <= 4){
      return(gamma[k+1])
    }
    gamma <- c(gamma)
    for(i in 5:k){
      gamma[i+1] <- phi[1]*gamma[i] + phi[2]*gamma[i-1] + phi[3]*gamma[i-2] + phi[4]*gamma[i-3]
    }
    return(gamma[k+1])
  }
  cv <- c(gamma[1])
  if(lags == 0){
    return(cv)
  }
  for(lag in 1:lags) {
    cv[lag+1] <- covariance(gamma, phi, k = lag)
  }
  return(cv)
}
# Simulation of a Gaussian AR(3)
AR4_simulate <- function(n, phi = c(0.5, 0.2, 0.1, 0.04), sigma2 = 1){
  eps <- rnorm(n, sd = sqrt(sigma2))
  x <- eps
  for(t in 5:n){
    x[t] <- phi[1]*x[t-1] + phi[2]*x[t-2] + phi[3]*x[t-3] + phi[4]*x[t-4] + eps[t]
  }
  return(x)
}

# *************************************************
#                      Inputs
# *************************************************
# Numer of simulations
nsim <- 500
# Horizon for each simulation
t_bar <- 100000
# AR(2) parameters
phi <- c(0.3, 0.15, 0.1, 0.03)
# Variance of the residuals
sigma2 <- 1
# *************************************************
#                      Simulations
# *************************************************
scenarios <- purrr::map(1:nsim, ~AR4_simulate(t_bar, phi, sigma2))
# *************************************************
#                      Moments
# *************************************************
# Compute variance and covariances with Monte Carlo
v_mc <- mean(purrr::map_dbl(scenarios, ~var(.x)))
cv_mc_L1 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-1], lag(.x, 1)[-1])))
cv_mc_L2 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1,2)], lag(.x, 2)[-c(1,2)])))
cv_mc_L3 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:3)], lag(.x, 3)[-c(1:3)])))
cv_mc_L4 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:4)], lag(.x, 4)[-c(1:4)])))
cv_mc_L5 <- mean(purrr::map_dbl(scenarios, ~cov(.x[-c(1:5)], lag(.x, 5)[-c(1:5)])))
# Compute variance and covariances with Formulas
v_mod <- AR4_covariance(phi, sigma2, lags = 0)[1]
cv_mod_L1 <- AR4_covariance(phi, sigma2, lags = 1)[2]
cv_mod_L2 <- AR4_covariance(phi, sigma2, lags = 2)[3]
cv_mod_L3 <- AR4_covariance(phi, sigma2, lags = 3)[4]
cv_mod_L4 <- AR4_covariance(phi, sigma2, lags = 4)[5]
cv_mod_L5 <- AR4_covariance(phi, sigma2, lags = 5)[6]

Covariance	Formula	MonteCarlo
$\mathbb{V}\{Y_t\}$	1.2543907	1.2509967
$\mathbb{C}v\{Y_t,Y_{t-1}\}$	0.5084245	0.5002624
$\mathbb{C}v\{Y_t,Y_{t-2}\}$	0.4036375	0.3996579
$\mathbb{C}v\{Y_t,Y_{t-3}\}$	0.3380467	0.3349660
$\mathbb{C}v\{Y_t,Y_{t-4}\}$	0.2504338	0.2482111
$\mathbb{C}v\{Y_t,Y_{t-5}\}$	0.1814536	0.1797934

Table 19.4: Theoric long term variance and covariances computed on 500 Monte Carlo simulations (t = 100000).

19.2.1 Stationary AR(1)

Let’s consider an AR(1) process, i.e. $$Y_t=\mu +{\varphi }_1{Y}_{t-1}+u_t\text{.}$$ Through recursion up to time 0 it is possible to express an AR(1) model as an $\text{MA}(\mathrm{\infty })$, i.e.  $$Y_t={\varphi }_1^t{Y}_0+\mu \sum _{j=0}^{t-1}{\varphi }_1^j+\sum _{j=0}^{t-1}{\varphi }_1^j{u}_{t-j}\text{,}$$ where the process is stationary if and only if $|{\varphi }_1|<1$. In fact, independently from the specific distribution of the residuals $u_t$, the unconditional expectation of an AR(1) converges if and only if $|{\varphi }_1|<1$, i.e.  $$\mathbb{E}\{Y_t\}={\varphi }_1^t{Y}_0+\mu \sum _{j=0}^{t-1}{\varphi }_1^j=\frac{\mu }{1-{\varphi }_1}\text{.}$$ The variance instead is computed as: $${\gamma }_0=\mathbb{V}\{Y_t\}={\sigma }_{\text{u}}^2\sum _{j=0}^{t-1}{\varphi }_1^{2j}=\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}\text{.}$$ The auto covariance decays exponentially fast depending on the parameter ${\varphi }_1$, i.e.  $${\gamma }_1=\mathbb{C}v\{Y_t,Y_{t-1}\}={\varphi }_1\cdot \frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2}={\varphi }_1\cdot {\gamma }_0\text{,}$$ where in general for the lag $k$ $${\gamma }_k=\mathbb{C}v\{Y_t,Y_{t-k}\}={\varphi }_1^{|k|}\cdot {\gamma }_0\text{.}$$ Finally, the autocorrelation function $${\rho }_1=\mathbb{C}r\{Y_t,Y_{t-1}\}=\frac{{\gamma }_1}{{\gamma }_0}={\varphi }_1\text{,}$$ where in general for the lag $k$ $${\rho }_k=\mathbb{C}r\{Y_t,Y_{t-k}\}={\varphi }_1^{|k|}\text{.}$$ An example of a simulated AR(1) process (${\varphi }_1=0.95$, $\mu =0.5$ and ${\sigma }_{\text{u}}^2=1$ and Normally distributed residuals) with its covariance function is shown in Figure 19.2.

Figure 19.2: AR(1) simulation and expected value (red) on the top. Empirical autocovariance (gray) and fitted exponential decay (blue) at the bottom.

set.seed(1) # random seed
# *************************************************
#                      Inputs
# *************************************************
# Number of steps
t_bar <- 100000
# Long term mean
mu <- 0.5
# AR parameters
phi <- c(phi1 = 0.95)
# Variance residuals
sigma2_u <- 1
# *************************************************
#                    Simulation
# *************************************************
# Initialization
Yt <- c(mu)
# Simulated residuals
u_t <- rnorm(t_bar, 0, sqrt(sigma2_u))
# Simulated MA(1) process
for(t in 2:t_bar){
  Yt[t] <- mu + phi[1]*Yt[t-1] + u_t[t]
}

Example: sampling from a stationary AR(1)

Example 19.2 Sampling the process for different $t$ we expect that, on a large number of simulations, the distribution will be normal with stationary moments, i.e. for all $t$ $$Y_t\sim \mathcal{N}(\frac{\mu }{1-{\varphi }_1},\frac{{\sigma }_{\text{u}}^2}{1-{\varphi }_1^2})\text{.}$$

# *************************************************
#                      Inputs
# *************************************************
set.seed(3) # random seed
t_bar <- 120 # number of steps ahead
j_bar <- 1000 # number of simulations
sigma <- 1 # standard deviation of epsilon
par <- c(mu = 0, phi1 = 0.7) # parameters
y0 <- par[1]/(1-par[2]) # initial point
t_sample <- c(30,60,90) # sample times
# *************************************************
#                   Simulations
# *************************************************
# Process Simulations
scenarios <- list()
for(j in 1:j_bar){
  Y <- c(y0)
  # Simulated residuals
  eps <- rnorm(t_bar, 0, sigma)
  # Simulated AR(1)
  for(t in 2:t_bar){
    Y[t] <- par[1] + par[2]*Y[t-1] + eps[t]
  }
  scenarios[[j]] <- dplyr::tibble(j = rep(j, t_bar),
                                  t = 1:t_bar,
                                  y = Y,
                                  eps = eps)
}
scenarios <- dplyr::bind_rows(scenarios)
# Trajectory j
df_j <- dplyr::filter(scenarios, j == 6)
# Sample at different times
df_t1 <- dplyr::filter(scenarios, t == t_sample[1])
df_t2 <- dplyr::filter(scenarios, t == t_sample[2])
df_t3 <- dplyr::filter(scenarios, t == t_sample[3])

Figure 19.3: Stationary AR(1) simulation with $\text{expected value}$, one possible $\text{trajectory}$ and $\text{samples}$ at different times.

Figure 19.4: Stationary AR(1) histograms for different sampled times with normal pdf from $\text{empiric moments}$ and normal pdf with $\text{theoric moments}$.

Statistic	Theoric	Empiric
$$\mathbb{E}\{Y_t\}$$	0.000000	-0.0027287
$$\mathbb{V}\{Y_t\}$$	1.960784	1.9530614
$$\mathbb{C}v\{Y_t,Y_{t-1}\}$$	1.372549	1.3586670
$$\mathbb{C}r\{Y_t,Y_{t-1}\}$$	0.700000	0.6956660

Table 19.5: Empiric and theoric expectation, variance, covariance and correlation (first lag) for a stationary AR(1) process.

19.2.2 Non-stationary AR(1): random walk

A non-stationary process has expectation and/or variance that changes over time. Considering the setup of an AR(1), if ${\varphi }_1=1$ the process degenerates into a so called random walk process. Formally, if $\mu \ne 0$ it is called random walk with drift, i.e. $$Y_t=\mu +Y_{t-1}+u_t\text{.}$$ Considering its $\text{MA}(\mathrm{\infty })$ representation $$Y_t=Y_0+\mu \cdot t+\sum _{j=0}^{t-1}{u}_{t-j}\text{,}$$ it is easy to see that the expectation depends on the starting point and on time $t$ and the shocks $u_{t-i}$ never decays. In fact, computing the expectation and variance of a random walk process it emerges a clear dependence on time, i.e.  $$\begin{array}{rlrl}& \mathbb{E}\{Y_t\mid {\mathcal{F}}_0\}=Y_0+\mu t& & \mathbb{V}\{Y_t\mid {\mathcal{F}}_0\}=t{\sigma }_{\text{u}}^2\\ & \mathbb{C}v\{Y_t,Y_{t-h}\}=(t-h)\cdot {\sigma }_{\text{u}}^2& & \mathbb{C}r\{Y_t,Y_{t-h}\}=\sqrt{1-\frac{h}{t}}\end{array}\text{,}$$ and the variance tends to explode to $\mathrm{\infty }$ as $t\to \mathrm{\infty }$.

Stochastic trend of a Random walk

Let’s define the stochastic trend $S_t$ as $S_t=\sum _{i=0}^{t-1}{u}_{t-i}$, then

1. The expectation of $S_t$ if $u_t$ are all martingale difference sequences, is zero, i.e.  $$\mathbb{E}\{S_t\}=\sum _{j=0}^{t-1}\mathbb{E}\{u_{t-j}\}=\sum _{j=0}^{t-1}\mathbb{E}\{\mathbb{E}\{u_{t-j}\mid {\mathcal{F}}_{t-1}\}\}=0\text{,}$$ and therefore $$\mathbb{E}\{Y_t\}=Y_0+\mu t+\mathbb{E}\{S_t\}=Y_0+\mu t\text{.}$$

2. The variance of $S_t$, if $u_t$ are all martingale difference sequences, is time-dependent, i.e.  $$\mathbb{V}\{Y_t\}=\mathbb{V}\{S_t\}=\sum _{j=0}^{t-1}\mathbb{V}\{u_{t-j}\}=\sum _{j=0}^{t-1}{\sigma }_{\text{u}}^2=t{\sigma }_{\text{u}}^2\text{.}$$ while the covariance between two times $t$ and $t-k$ depends on the lag, i.e. $$\begin{array}{rl}\mathbb{C}v\{S_t,S_{t-h}\}& =\mathbb{E}\{S_t{S}_{t-h}\}-\mathbb{E}\{S_t\}\mathbb{E}\{S_{t-h}\}=\\ & =\mathbb{E}\left\{\sum _{i=0}^{t-1}{u}_{t-i}\sum _{j=0}^{t-h-1}{u}_{t-h-j}\right\}\\ & =\sum _{j=0}^{t-h-1}\mathbb{E}\left\{u_{t-j}^2\right\}\\ & =\sum _{j=0}^{t-h-1}\mathbb{V}\{u_{t-j}\}=\\ & =(t-h)\cdot {\sigma }_{\text{u}}^2\end{array}$$ and so the correlation $$\begin{array}{rl}\mathbb{C}r\{S_t,S_{t-h}\}& =\frac{\mathbb{C}v\{S_t,S_{t-h}\}}{\sqrt{\mathbb{V}\{S_t\}\cdot \mathbb{V}\{S_{t-h}\}}}=\\ & =\frac{(t-h)\cdot {\sigma }_{\text{u}}^2}{{\sigma }_{\text{u}}^2\sqrt{t(t-h)}}=\\ & =\frac{(t-h)}{\sqrt{t(t-h)}}=\\ & =\sqrt{\frac{t-h}{t}}=\\ & =\sqrt{1-\frac{h}{t}}\end{array}$$ tends to one as $t\to \mathrm{\infty }$, in fact: $$\underset{t\to \mathrm{\infty }}{lim}\mathbb{C}r\{S_t,S_{t-h}\}=\underset{t\to \mathrm{\infty }}{lim}\sqrt{1-\frac{h}{t}}=1$$

set.seed(1) # random seed
# *************************************************
#                      Inputs
# *************************************************
# Number of steps
t_bar <- 100000
# Long term mean
mu <- 0.02
# Variance residuals
sigma2_u <- 1
# *************************************************
#                    Simulation
# *************************************************
# Initialization
Yt <- c(mu)
# Simulated residuals
u_t <- rnorm(t_bar, 0, sqrt(sigma2_u))
# Simulated MA(1) process
for(t in 2:t_bar){
  Yt[t] <- mu + Yt[t-1] + u_t[t]
}

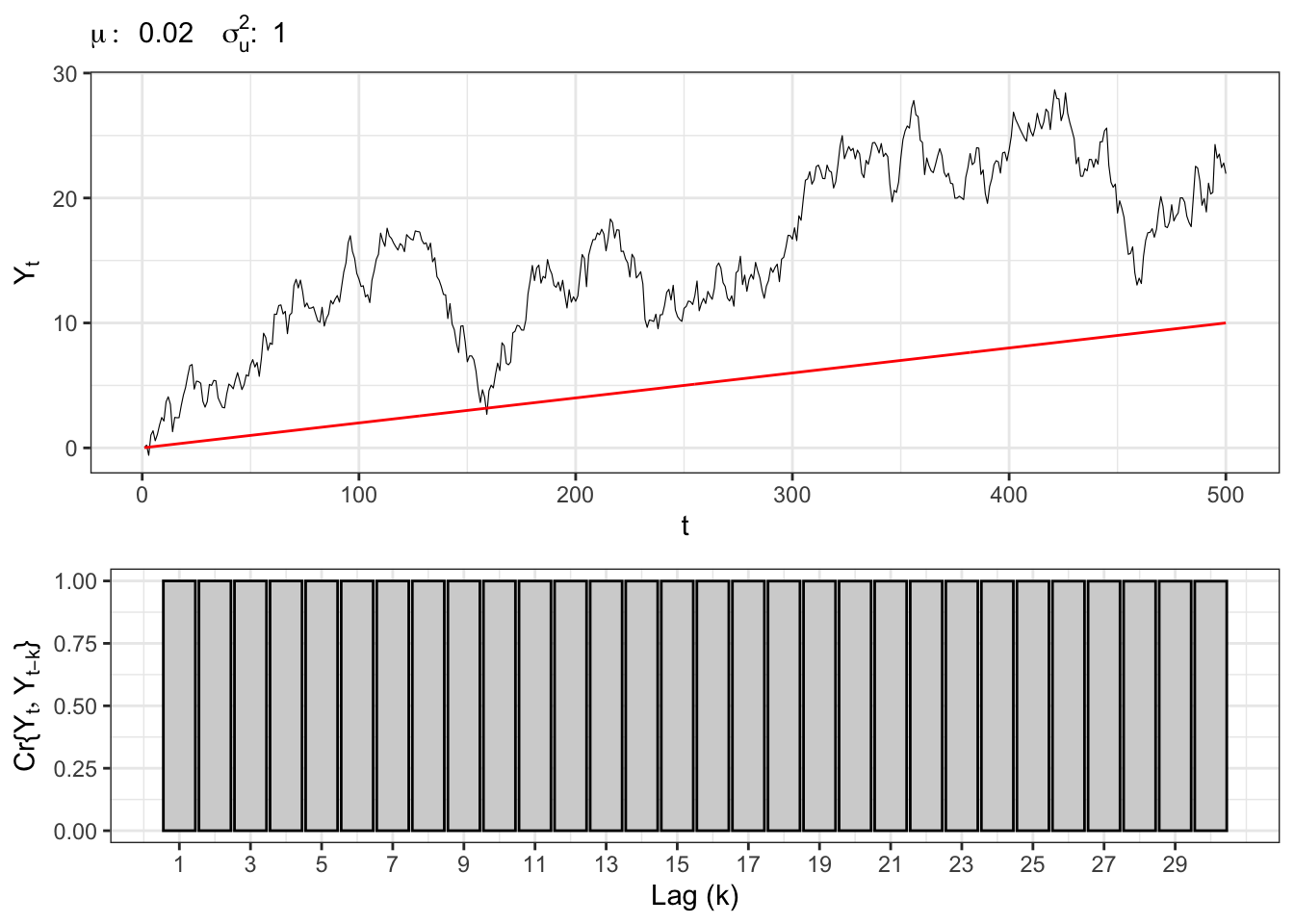

Figure 19.5: Random walk simulation and expected value (red) on the top. Empirical autocorrelation (gray).

Example: sampling from non-stationary AR(1)

Example 19.3 Let’s simulate an random walk process with drift with a Gaussian error, namely $u_t\sim \mathcal{N}(0,{\sigma }_{\text{u}}^2)$.

# *************************************************
#                      Inputs
# *************************************************
set.seed(5) # random seed
t_bar <- 100 # number of steps ahead
j_bar <- 2000 # number of simulations
sigma0 <- 1 # standard deviation of epsilon
par <- c(mu = 0.3, phi1 = 1) # parameters
X0 <- c(0) # initial point
t_sample <- c(30,60,90) # sample times
# *************************************************
#                   Simulation
# *************************************************
# Process Simulations
scenarios <- tibble()
for(j in 1:j_bar){
  # Initialize X0 and variance
  Xt <- rep(X0, t_bar)
  sigma <- rep(sigma0, t_bar)
  # Simulated residuals
  eps <- rnorm(t_bar, mean=0, sd=sigma0)
  for(t in 2:t_bar){
    sigma[t] <- sigma0*sqrt(t)
    Xt[t] <- par[1] + par[2]*Xt[t-1] + eps[t]
  }
  df <- tibble(j = rep(j, t_bar), t = 1:t_bar, Xt = Xt,
               sigma = sigma, eps = eps)
  scenarios <- dplyr::bind_rows(scenarios, df)
}
# Compute simulated moments
scenarios <- scenarios %>%
  group_by(t) %>%
  mutate(e_x = mean(Xt), sd_x = sd(Xt))
# Trajectory j
df_j <- dplyr::filter(scenarios, j == 6)
# Sample at different times
df_t1 <- dplyr::filter(scenarios, t == t_sample[1])
df_t2 <- dplyr::filter(scenarios, t == t_sample[2])
df_t3 <- dplyr::filter(scenarios, t == t_sample[3])

Figure 19.6: Non stationary AR(1) simulation with expected value (red), a possible trajectory (green) and samples for different times (magenta) on the top. Theoretic (blue) and empiric (black) std. deviation at the bottom.

Sampling the process for different $t$ we expect that, on a large number of simulations, the distribution will be still normal but with non-stationary moments, i.e.  $$X_t\sim \mathcal{N}(\mu t,{\sigma }_u^{2}t)\text{.}$$

Figure 19.7: Non-stationary AR(1) histograms for different sampled times with normal pdf with empiric moments (blue) and normal pdf with theoretic moments (magenta).

t	$$\mathbb{E}\{Y_t\}$$	$${\mathbb{E}}^{\text{mc}}\{Y_t\}$$	$$\mathbb{V}\{Y_t\}$$	$${\mathbb{V}}^{\text{mc}}\{Y_t\}$$
30	8.7	8.698311	29	29.69114
60	17.7	17.517805	59	60.09756
90	26.7	26.268452	89	90.05715

Table 19.6: Empiric and theoric expectation, variance, covariance and correlation (first lag) for a stationary AR(1) process.

Wold, Herman. 1939. “A Study in the Analysis of Stationary Time Series. By Herman Wold.” Journal of the Institute of Actuaries 70 (1): 113–15. https://doi.org/10.1017/S0020268100011574.
